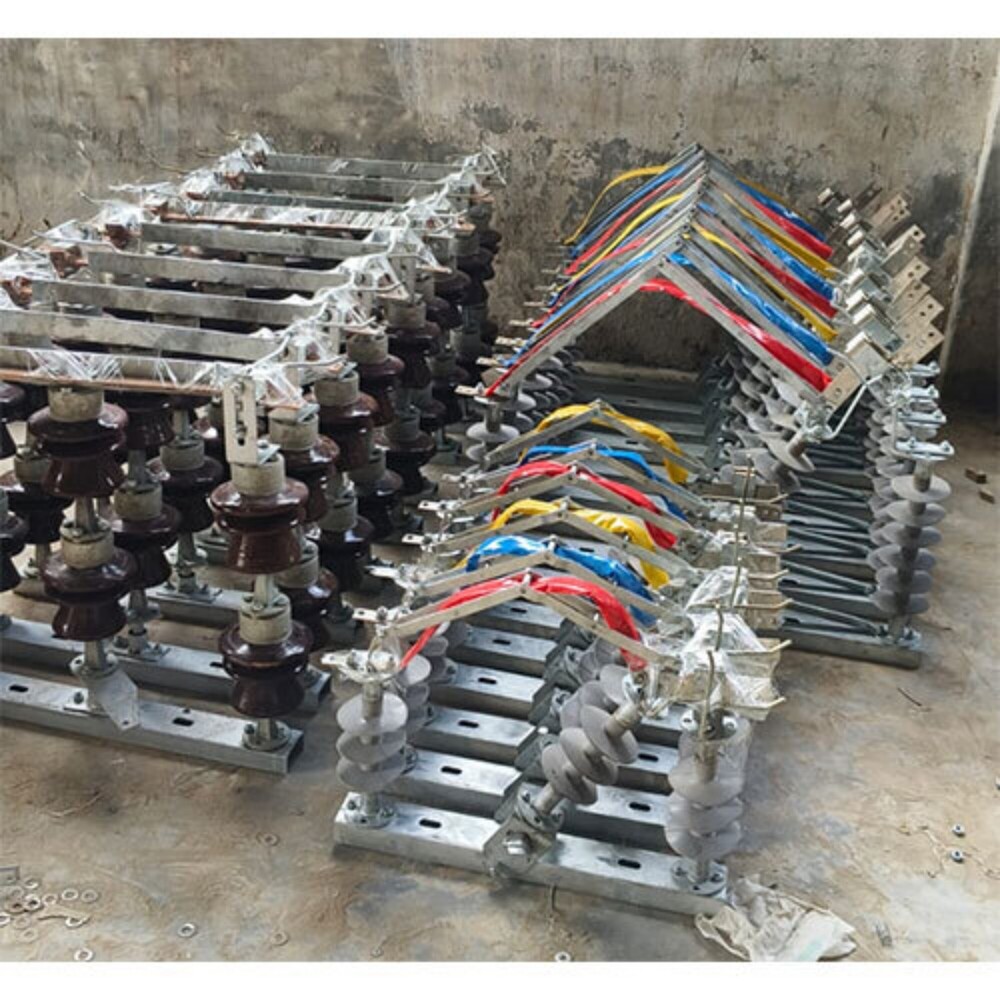

33 kV ab SWITCH

Name: 33 kV ab SWITCH
Brand: BHARAT ELECTRICAL & INSULATOR
Price: 6500 INR
Availability: InStock

Price 6500 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

33 kV ab SWITCH Specification

Temperature Range
-40C to +70C

Circuit Type
AC

Mechanical Life
2000 operations

Automation Grade
Manual

Number of Module
1

Max. Current
800 A

Rated Voltage
33 kV

Response Time
<0.2 s

Protection Level
IP54

Finish Type
Hot Dip Galvanized

Product Type
33 kV ab SWITCH

Material
Ceramic

Insulation Resistance
10000 M

Contact Resistance
35

Max. Voltage
36 kV

Operating Temperature
-25C to +55C

Stoke
Manual/Lever operated

Size
Standard

Color
Silver

Weight
32 kg (approx.)

Mounting Type
Outdoor, Pole Mounted

Current Rating
400800 A

No Of Poles
3

Wind Endurance
Up to 180 km/h

Corrosion Resistance
High (Galvanized steel components)

Terminal Connection
Copper/Aluminum Clamp

Break Type
Air Break

Operating Mechanism
Horizontal/Vertical operation adjustment

Dielectric Strength
110 kV (Impulse)

Interruption Capacity
25 kA

Operating Handle
Provided with earthing arrangement

Application
Outdoor high-voltage power distribution

Compliance Standards
IS 9921/IEC 62271

Arcing Horn
Provided for arc quenching

Insulator Type
Post Insulator

Service Type
Manual/Disconnector

Phase
Three Phase

33 kV ab SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

About 33 kV ab SWITCH

Commanding in performance and flawless in reliability, our 33 kV AB Switch procures the prime solution for outdoor high-voltage power distribution. With an interruption capacity of 25 kA, this switch features air break type operation and robust post insulators, ensuring reduced downtime and enhanced safety. Terminal connections utilize copper or aluminum clamps for seamless access, while galvanized steel components offer high corrosion resistance. Designed for horizontal or vertical operation, it meets IS 9921 and IEC 62271 standards, ensuring supreme dielectric strength and mechanical longevity for demanding environments.

Optimized For Outdoor High-Voltage Application

The 33 kV AB Switch is engineered for outdoor power distribution sites and prime utility locations. Its manual/disconnector service type with adjustable operation mechanisms ensures flawless adaptation to both horizontal and vertical installations, making it ideal for utility substations, pole-mounted grids, and maintenance zones. Usage is straightforward, supporting AC circuits across three-phase configurations, designed to withstand challenging climates and rigorous field demands.

Sample Options, Speedy Delivery & Competitive Certification

Samples of the 33 kV AB Switch may be requested for review prior to bulk procurement. With our quick dispatch commitment, orders are delivered within the lowest possible lead time and at competitive, list prices. Each unit complies rigorously with IS 9921 and IEC 62271 standards, ensuring international certification and prime assurance for reliability, safety, and operational excellence in each command and deployment.

FAQs of 33 kV ab SWITCH:

Q: How does the 33 kV AB Switch ensure operational safety during outdoor applications?

A: The switch features post insulators, galvanized steel components, and arcing horns for arc quenching, all of which provide commanding protection and reduced risk during high-voltage power distribution in outdoor environments.

Q: What is the process for adjusting the operating mechanism of the switch?

A: The 33 kV AB Switch supports both horizontal and vertical operation adjustment, allowing for precise alignment and flawless performance according to site requirements. Adjustment is manual and can be configured during installation or maintenance.

Q: Where can the 33 kV AB Switch be mounted for optimal performance?

A: This switch is intended for outdoor, pole-mounted installation in utility substations, distribution grids, or any high-voltage network requiring reliable manual or lever-operated disconnection.

Q: When is a sample available, and what is the typical delivery time?

A: Samples can be requested before placing a bulk order. Thanks to quick dispatch and efficient procurement processes, typical delivery times are minimized to ensure you access our products promptly.

Q: What are the benefits of the corrosion-resistant construction of the switch?

A: The hot dip galvanized finish and choice of high-quality insulator materials give the switch exceptional longevity, reducing maintenance needs and affording prime protection against harsh weather and corrosive conditions.

Q: What certifications does the 33 kV AB Switch comply with?

A: Each unit complies with IS 9921 and IEC 62271 international standards, guaranteeing commanding reliability, safety, and quality for all power distribution applications.
